John Deere 7505 2WD or MFWD Tractor Service Repair Technical Manual TM4868

It is Factory Service Repair Manual for John Deere 2WD or MFWD  7505 Tractors

This manual contains high quality images, instructions to help you to troubleshoot, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This is repair only manual, Diagnostic Manual with electrical wiring diagrams are sold separate.

Covered models:
  7505

Contents:

Safety

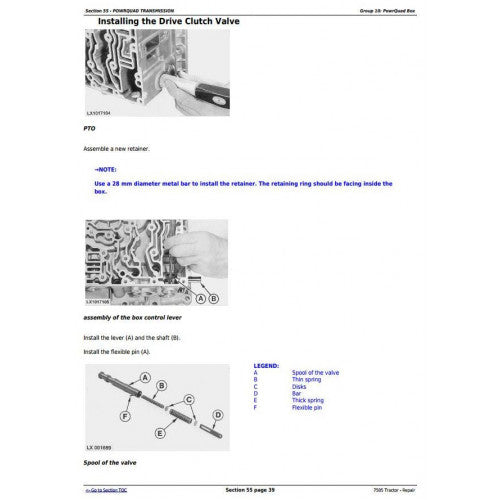

   PowrQuad Transmission
      Separating and Installing Components
      Transmission Activation
      PowrQuad Box

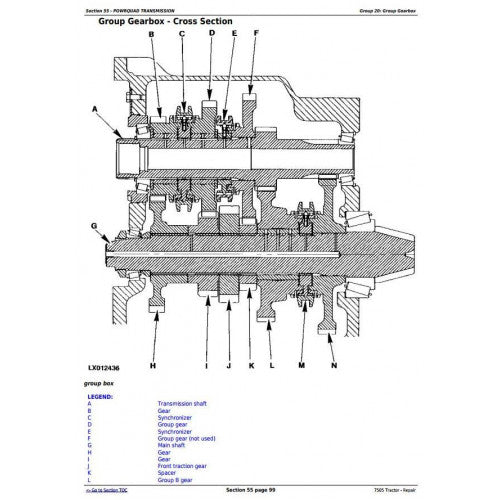

      Group Gearbox
   Power Transmission (no transmission)
      Separating and Installing Components
      Transmission Shaft and Torsion Damper
      Front Wheel Drive Clutch
      Differential
      Hydraulic Pump Transmission
      Final reductions
      Power Take-Off
   Steering and Brakes
      Hydrostatic Steering
      Brake Valve
      Brake Disks
   Hydraulic system
      Remote Control Valve Controls - RCV
      Remote Control Connections and Valves
      Hydraulic Control Valves
      Hydraulic Lift Valve

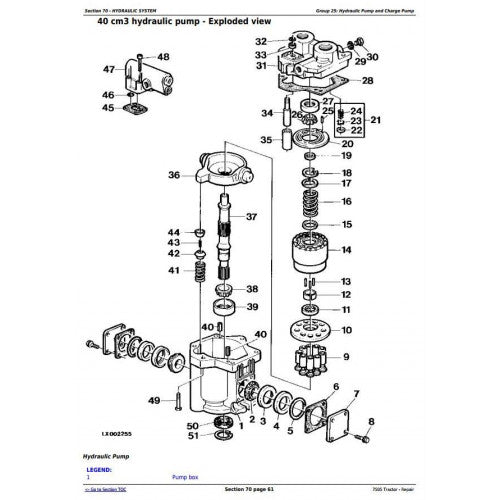

      Hydraulic Pump and Charge Pump
      Gear pump - (Eaton)
      Gear Pump - (Albarus)
      Traction/Lift Cylinder Sensor
   Front Traction Shaft APL 359
      Special Tools
      Technical Data and Adjustment Values
      Disassembly
      Assembling the differential
      Pinion depth
      Adjusting the play between the teeth
      Assembling the Bridges
      Assembling the Universal Joint
      PTO
      Assembling the Hydraulic Cylinder
      Convergence Regulation
      Separation and Installation of the Front Shaft
      Main Chassis
      Front Axle Support
      Front and Rear Wheels
      Traction bar
   Front Axle AS 2060
      Disassembling the Steering Column
      Final Reducer
      Articulation
      Differential
   Operator Platform and Cab
      Removing and Installing the Operator Platform
      Air-conditioning System
      Heating System
      Cab
      Various
   Special Tools
      Custom-made Tools

Pages - 643
Format - PDF
Printable – Entire Manual Or Single Page
Zoomable – All Diagrams & Pictures
Exceptional Support 24x7
