Caterpillar 324D L EXCAVATOR ELECTRICAL & HYDRAULIC SCHEMATIC MANUAL GPK

Caterpillar 324D L EXCAVATOR ELECTRICAL & HYDRAULIC SCHEMATIC MANUAL GPK

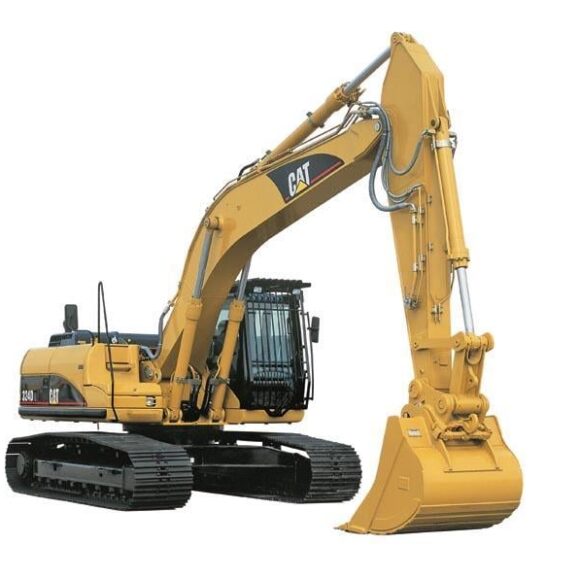

This official Caterpillar Electrical and Hydraulic Schematic Manual is for the 324D L Excavator with Serial Number prefix GPK. It provides complete, factory-verified diagrams of all electrical and hydraulic systems for accurate troubleshooting, repair, and maintenance. The electrical schematics include wiring diagrams, harness layouts, relays, switches, sensors, and control modules. The hydraulic schematics detail pumps, valves, cylinders, motors, hose routing, and flow paths. This manual is an essential resource for technicians, operators, and mechanics maintaining peak performance of the CAT 324D L Excavator.

Includes ALL DIAGRAMS & PICTURES for 324D L EXCAVATOR GPK
Format: PDF
Language: English
Download Instructions: PDF will be delivered to your email after purchase
