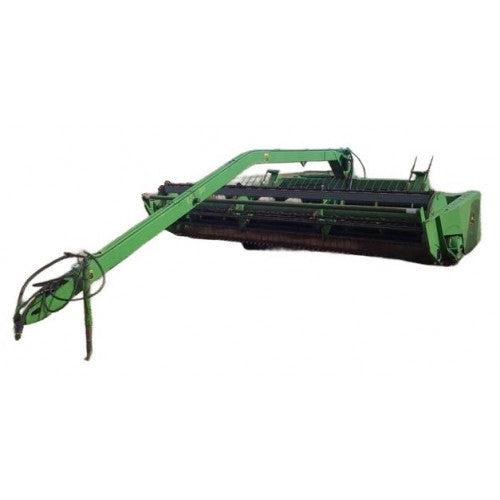

John Deere 1424 Mower-Conditioners Special Instruction (TM1264)

It is factory Special Instruction for John Deere Mower-Conditioners Models 1424.

This manual will assist you in repairing for your mower-conditioner.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   1424

Table of Contents:
   INTRODUCTION
   GENERAL
      Safety
      Specifications and Torques
      Diagnosing Malfunctions
      Description
      Lubrication
      Special Tools
   PLATFORM
      General Information and Removal
      Reel
      Auger
      Conditioner
      Right and Left-Hand Cross Shafts
   HYDRAULIC SYSTEM
      General Information, Diagnosis and Tests
      Hydraulic Pump
      Planetary Gear Case
      Hydraulic Motor
      Relief Valve, Shutoff Valve and Filter
      Hydraulic Steering System
      Hydraulic Lift System
   CUTTING COMPONENTS
      Knife Drive Case
      Cutterbars
      Knives
   MISCELLANEOUS
      Wheel Hub
      Pivot Bushing
      Tongue

Format: PDF, 176 pages
Language: English
Publication Date: 01 Aug 1982
