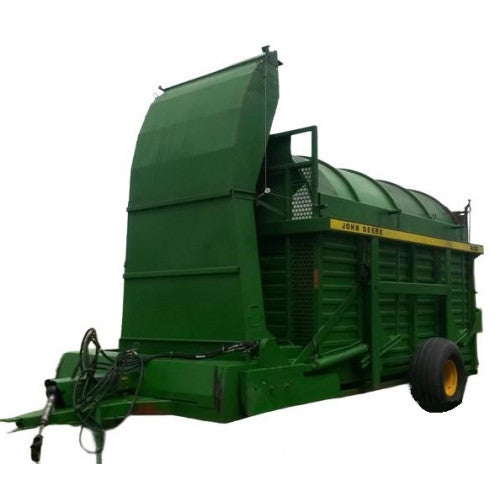

John Deere 200 and 300 Stack Wagons Technical Manual (TM1110)

It is factory Technical Manual for John Deere Stack Wagons Models 200 and 300.

This manual will assist you in diagnosing, and repairing for your stack wagon.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   200
   300

Table of Contents:
   Introduction
   Safety
   General
      Description
      General Specifications
      Lubrication
      Diagnosing Malfunctions
   Drive Train
      General Information
      Powershaft
      Main Gear Case and Input Shaft
      Rotor Drive
      Unloader Chains and Drive
      Lower Door Conveyor
      Specifications and Torque Values
   Hydraulic System
      General Information
      Hydraulic Cylinders
      Specifications and Torque Values
   Pickup Rotor and Air System
      General Information
      Pickup Rotor
      Specifications
   Miscellaneous
      Rear Doors
      Canopy
Format: PDF, 74 pages
Language: English
Publication Date: 01 Feb 1979
