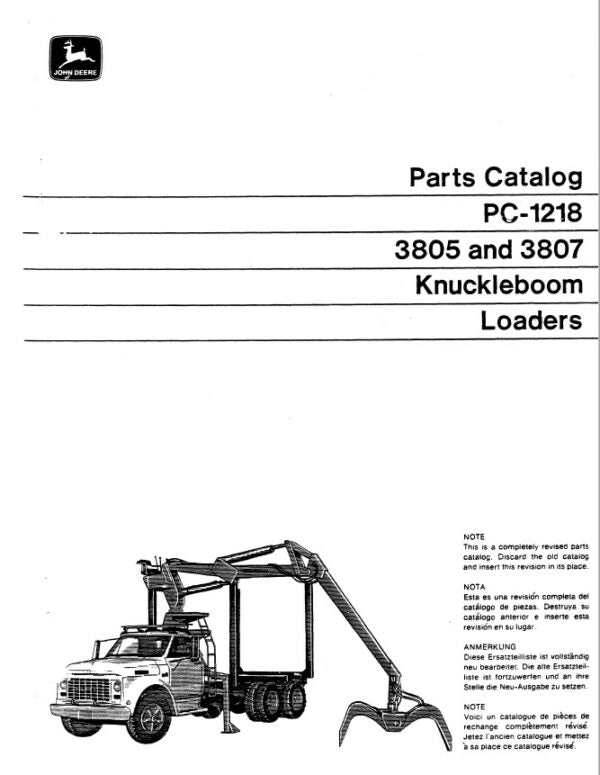

John Deere 3805, 3807 Knuckleboom Loader Parts Manual PC1218

Instant Download official manual for the John Deere 3805, 3807 Backhoe Loader provides complete exploded-view diagrams and OEM part numbers for every system and assembly. It is the definitive reference for service professionals and parts specialists who need accurate identification of components across drivetrain, hydraulics, electrical, engine, cab, loader, and backhoe subsystems.

Model Covered:
 3805, 3807

Manual Covers:
 Clevis, hanger and pins -
GRAPPLES Log -
Stabilizers -
Ladders and platform -
BRACKETS, MOUNTING Reservoir -
BRACKETS, MOUNTING Reservoir (Continued) -
BRACKETS, MOUNTING Pump -
Filter, oil -
CYLINDERS Boom swing -
CYLINDERS Lift and stick -
CYLINDERS Stabilizer -
CYLINDERS Stabilizer (Continued) -
CYLINDERS Grapple swing -
CYLINDERS Grapple -
PUMPS Clockwise, rotating -
VALVES Lower control -
VALVES Upper, grapple swing, boom lift and end plates -
VALVES Upper, grapple open and close and stick boom -
LINES AND CONNECTIONS, OIL Pump, reservoir, lower valve and swivel -
LINES AND CONNECTIONS, OIL Lower valve to swing and stabilizer cylinders -
LINES AND CONNECTIONS, OIL Swivel to upper valve -
LINES AND CONNECTIONS, OIL Upper valve to lift and stick cylinders -
LINES AND CONNECTIONS, OIL Upper valve to grapple -
LINES AND CONNECTIONS, OIL Log grapple -
Black, manifold -
VALVES In-line relief -
Control, hydro-throttle -
BRACKETS, MOUNTING Lower valve -
LINKAGE, CONTROL Lower valve -
LINKAGE, CONTROL Boom swing and lift -
LINKAGE, CONTROL Grapple and stick boom -
LINKAGE, CONTROL Grapple and stick boom (Continued) -
LINKAGE, CONTROL Grapple and stick boom (Continued) -
LINKAGE, CONTROL Grapple and stick boom (Continued) -
