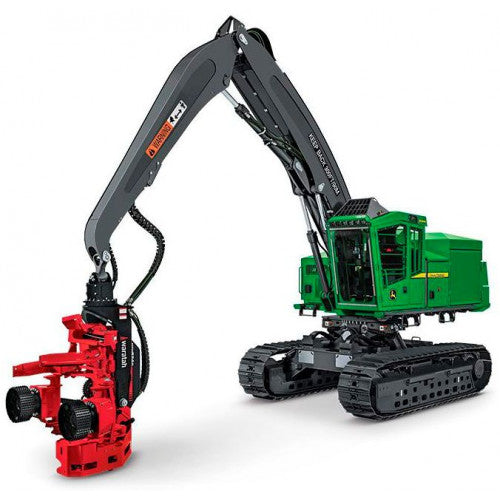

John Deere 953MH, 959MH (SN. C317982-, D317982-) Tracked Harvesters Diagnostic Manual (TM14267X19)

It is  Operation and Test Technical Manual for John Deere Tracked Harvesters Models 953MH and 959MH

This manual contains high quality images, circuit diagrams, diagnostic procedures to help you to diagnostic, troubleshoot and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

This is Diagnostic manual, including electrical and hydraulic wiring diagrams, Repair manual are sold separate.


Covered models:
   953MH (PIN: 1T0953MH_ _C317982—; PIN: 1T0953MH_ _D317982—)
   959MH (PIN: 1T0959MH_ _C317982—; PIN: 1T0959MH_ _D317982—)

Contents:

   Foreword
   Manual Identification - READ THIS FIRST!
   General Information
      Safety
   Diagnostic Trouble Codes (DTCs)
      Engine Control Unit (ECU) Diagnostic Trouble Codes
      Left Armrest Controller (ACL) Diagnostic Trouble Codes
      Right Armrest Controller (ACR) Diagnostic Trouble Codes
      Sealed Switch Module (SSM) Diagnostic Trouble Codes
      Vehicle Control Unit (VCU) Diagnostic Trouble Codes
      Primary Display Unit (PDU) Diagnostic Trouble Codes
   Operational Checkout Procedure
      Operational Checkout Procedure
   Engine
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Tests
   Electrical System
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Monitor Operation
      Diagnostic Test Box
      Tests
   Power Train
      Theory of Operation
      Diagnostic Information
   Hydraulic System
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Tests
   Miscellaneous
      Theory of Operation
      System Diagrams
   Heating and Air Conditioning
      Theory of Operation
      System Diagrams
      Diagnostic Information
      Tests

Language: English
Format: PDF, 789 pages
