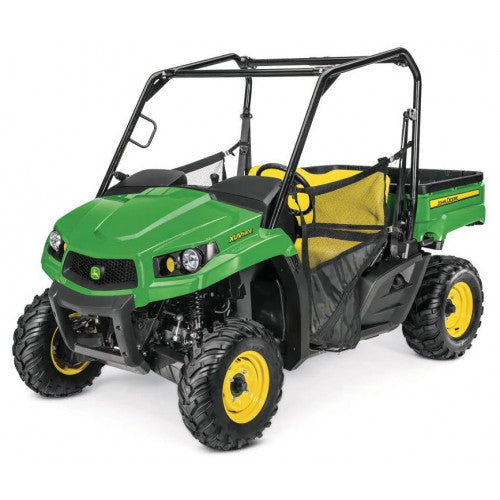

John Deere XUV590E(S4), XUV590M(S4) Gator Utility Vehicle (SN. 010001-) Service Technical Manual (TM149719)

It is Technical Manual for John Deere S4 Gator Utility Vehicles models XUV590E, XUV590E S4, XUV590M and XUV590M S4

This manual contains high quality images, circuit diagrams, instructions to help you to maintenance, troubleshooting, diagnostic, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

Covered models (Serial No. from 010001):
   XUV590E
   XUV590E S4
   XUV590M
   XUV590M S4

Contents:

   Foreword
   General Information
      Safety
      General Specifications
      Fuel and Lubricants
      Machine Specifications
   Engine Repair
      Engine
   Electrical Repair
      Wiring Harnesses
   Power Train Repair
      Transmission
      Mechanical Front Wheel Drive
      Axles and Driveshaft
   Steering and Brake Repair
      Steering
      Brakes
   Miscellaneous Repair
      Wheels
      Hood, Cargo Box, and Bumper
      Fuel and Air System
      Cooling System
   Operator ` s Station Repair
   Engine Operation, Tests and Adjustments
      Component Location
      Tests and Adjustments
      Diagnosis
   Electrical Operation, Tests and Adjustments
      Component Location
      Theory of Operation
      Schematics
      Tests and Adjustments
      Connector Information
   Control Unit Operation, Tests, and Adjustments
      Theory of Operation
      Diagnostic Trouble Codes, ICC
      Diagnostic Trouble Codes, ECU
      Diagnostic Trouble Codes, SCU
      Service ADVISOR Readings
   Power Train Operation, Tests and Adjustments
      Component Location
      Theory of Operation
      Tests, and Adjustments
   Steering and Brake Operation, Tests and Adjustments
      Component Location
      Theory of Operation
      Diagnosis
      Tests and Adjustments
   Service Tools
      Service Tools and Kits

Language: English
Format: PDF, 639 pages
