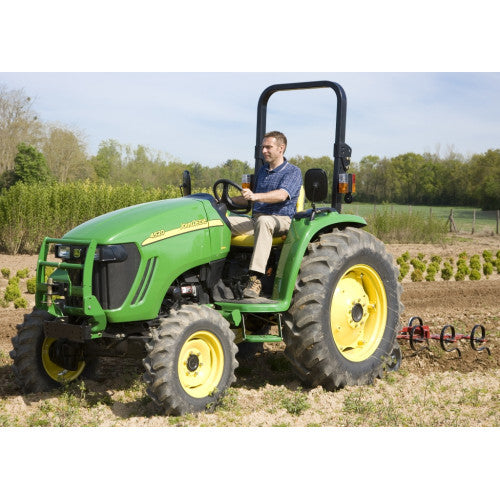

TM105119 - John Deere 4520, 4720 Compact Utility Tractor W/O Cab (SN. 650001-) Service Technical Manual

It is Factory Diagnostic and Repair Technical Service Manual for John Deere Compact Utility Tractors Models 4520, 4720 (Without Cab)

This manual contains high quality images, circuit diagrams, instructions to help you to maintenance, troubleshooting, diagnostic, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

Covered models:
  4520 (SN. from 650001)
  4720 (SN. from 650001)

Contents:

   Foreword
   Safety
      Safety
   Specifications and Information
      General Specifications
      Fuel and Lubricants
      Serial Number Locations
   Engine
      Specifications
      Repair
   Electrical - NA
      General Information
      Specifications
      Component Location
      Schematics and Harnesses
      Operation and Diagnostics
      Tests and Adjustments
      Service Codes
      Electronic Controllers
      Operation and Diagnostics-DTCs (TCU)
      Operation and Diagnostics-DTCs (ICC)
      Repair
   Electrical - European
      European Electrical Section
      Specifications
      Component Location
      Schematics and Harnesses
      Operation and Diagnostics
      Service Codes
      Electronic Controllers
      Operation and Diagnostics - DTCs (TCU)
      Operation and Diagnostics - DTCs (ICC)
   Power Train - PRT
      Specifications
      Component Location
      Theory of Operation
      Tests and Adjustments
      Repair
   Power Train - Hydrostatic
      Specifications
      Component Location
      Schematics
      Theory of Operation
      Diagnostics
      Tests and Adjustments
      Repair
   Power Train - Final Drive
      Specifications
      Component Location
      Theory of Operation
      Diagnostics
      Tests and Adjustments
      Repair
      PTO Theory of Operation
      PTO Repair
   Hydraulics
      Specifications
      Component Location
      Schematics and Harnesses
      Theory of Operation
      Diagnostics
      Tests and Adjustments
      Repair
   Steering
      Specifications
      Component Location
      Theory of Operation
      Diagnostics
      Tests and Adjustments
      Repair
   Brakes
      Specifications
      Component Location
      Theory of Operation
      Diagnostics
      Tests and Adjustments
      Repair
   Miscellaneous
      Specifications
      Repair

Pages - 1314
Language: English
Format: PDF

Unlimited downloads, Lifetime Access
Access PDF Contents & Bookmarks
Step-by-step instructions & clear diagrams
Trustworthy information directly from the manufacturer
Get an exchange if you can't find the inform you need (See detail)
Detailed instructions for opening and using the manual file
